Home » Products » PSA Nitrogen Generator » PSA Nitrogen Generator

PSA Nitrogen Generator

PSA Nitrogen Generator
PSA Nitrogen Generator
Product Code : FFT - 05
Brand Name : FRESH FOOD TECHNOLOGY
Product Specifications
  • Product Type
  • Nitrogen Generator
  • General Use
  • For produce nitrogen from air by removing the oxygen
  • Material
  • Stainless Steel
  • Capacity
  • 80 Cubic Meter (m3)
  • Purity(%)
  • 99%
  • Weight (kg)
  • 115 Kilograms (kg)
  • Computerized
  • No
  • Automatic
  • Yes
  • Feeding Size
  • Manual
  • Control System
  • Manual
  • Pressure
  • 7 Bar
  • Power
  • 50 Watt/Volt ( w/v)
  • Dimension(L*W*H)
  • 50 x 60 x 150 Centimeter (cm)
  • Color
  • Gray
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Payment Terms
  • Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque, Others
  • Delivery Time
  • 7 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

With great conceit, we set up ourselves as the foremost manufacturer, exporter and supplier of excellent quality PSA Nitrogen Generator that is available in various specifications to meet the diverse needs of the clients. It is used to produce nitrogen from air by removing the oxygen. This generator is manufactured using highly durable components and innovative technology at our state-of-the-art manufacturing unit. We are offering this PSA Nitrogen Generator at market leading prices.

Features:

  • Low maintenance
  • Sturdiness
  • Operational fluency
  • Long working life

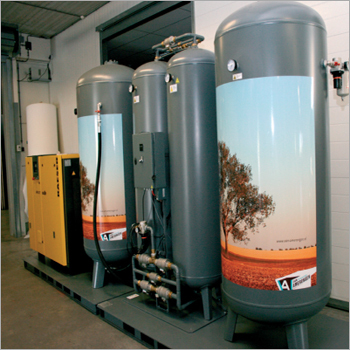

PSA Nitrogen Generator

PSA stands for Pressure Swing Absorption. A PSA offered by us produces nitrogen from air by removing the oxygen from lt. Outside air contains ap-proximated 20.8% oxygen (O2); our PSAs produce nitrogen from this with a residual oxygen level of, as standard, 1% But if required, levels of between 1ppm and 5% are possible. The PSA Ntrogen Generator is extremely suitable for projects where significant amounts of nitrogen under high pressure have to be supplied. In fruit storage, the advantage of this system is that reinforced tubing can be installed instead of a PVC network. This simplifies the installation.

Plus Points

  • Kaeser compressor, a reputable make on the market (alternative: Atlas Copco)
  • Standard cool dryer in the compressor
  • High-quality filtration system to protect active carbon
  • Tanks specially approved for high pressure
  • Standard residual oxygen level 1%; upon request, residual oxygen levels of 1ppm to 5%
  • Smaller and (much) greater capacities possible than those stated in table 1
  • Ideal for use with long pipe networks or, for example, the storage of berries (boosting not required)
  • Optional: extra active carbon filter
The PSA Nitrogen generators are available in various capacities

Model

Specs

Dimensions

Weight

Connection

Compressors

At 15, Reu O2 (N2 )

(L x W x H)

(kg)

(Inch-mm)

Metal

Model

Capacity (in2st3)

Optional pressure (bar)

Max epose pressure (bar)

Nolpe at 1 meter (dB)

Power consumption (KW)

D07PSA007

8

50 x 60 x 150

115

3/4-19

Keser

SM 9 T

0,80

7,5

8,0

64

5,5

D07PSA015

16

50 xd 60 x 150

145

3/4-19

Keser

SM 9 T

0,80

7,5

8,0

64

5,5

D07PSA025

24

50 x 60 x 200

200

3/4-19

Keser

SM 12 T

1,20

7,5

8,0

64

7,5

D07PSA035

38

70 x 70 c 186

250

3/4-19

Keser

SK 21 T

1,80

7,5

8,0

64

11

D07P5A050

54

70 x 70 x 221

370

1-25

Keser

ASK 27 T

2,60

7,5

8,0

66

15

D07PSA075

73

90 x 75 x 230

500

1-25

Kaeser

ASK 35 T

3,50

10,0

11,0

70

22

D07PSA115

117

110 x 75 c 231

700

1-25

Kaeser

ASD 57T

5,51

10,0

11,0

68

30

D07PSA145

145

130 x 90 x 230

1100

1 1/2-38

Keser

BSD 72 T

7,00

10,0

11,0

68

37
